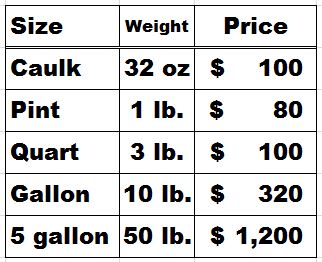

EBS-1X Pricing

• 100% solids, no solvents or VOC's
• Shelf life > 6 Months @ 75⁰F or 12 months refrigerated (45⁰F)
• Cures in 30-60 min. at 120-150⁰C (250-300⁰F)
• 1 Gallon 4mil coating will cover 400 sq.ft.
• Clean up / thin out with M EK or Acetone

• Phenolic bonded, graphite and fiber reinforced.
• Green cures in 1-2 hours at room temp.
  Cure at 265F for 2-4 hours for full strength.
• Max temp of use in vacuum 2980C (5400F)
• Shear strength of 1100 PSI for std. graphite materials.
• Low thermal expanis ion of 4.1ppmx10-6/deg. F

Instructions

Brochure

SDS Sheet

• Furfurol Alcohol and Phenolic Resin System.
• 3 Month Shelf Life @ 70F, 6 Month @ 40F
• May be diluted with isopropyl alcohol.
  Solvent is Flammable. Considered Hazmat for shipping purposes.
• 2 hour cure at 177C (350F) in well ventilated oven.
• Heat to 700C (1292F) for full strenght bonding.
• 5400F Max. Temp of Use.
• Keep refrigerated for longest shelf life.

• Up to 3 year shelf life as components
• Mix two parts; Part 1 to Part 2 // 4 to 1 ratio. Mix viscosity 20,000 cps
• 100% solids, no solvents or VOC's
• Pot life of mix, 2 to 3 hours at ambient conditions
• Mix cures t o green strength in 4 hrs at room temperature / 2 hrs at 150⁰C (302⁰F)
• Bake out for 1 hour recommended at 650⁰C (1200⁰F)
• Available in two part packages pre-balanced to mix and cartridges
• Compatible with automatic dispensing equipment
• Max temp of use in vacuum 2980C (5400F)
• High char yield; 78%
• Shear strength of 1100 PSI for std. graphite materials

SDS Sheet

Brochure

Instructions

SDS Sheet

Brochure

Instructions

SDS Sheet

Brochure

Instructions

SDS Sheet

Brochure

Instructions

Properties

Pricing

Properties

Properties

Pricing

Properties
